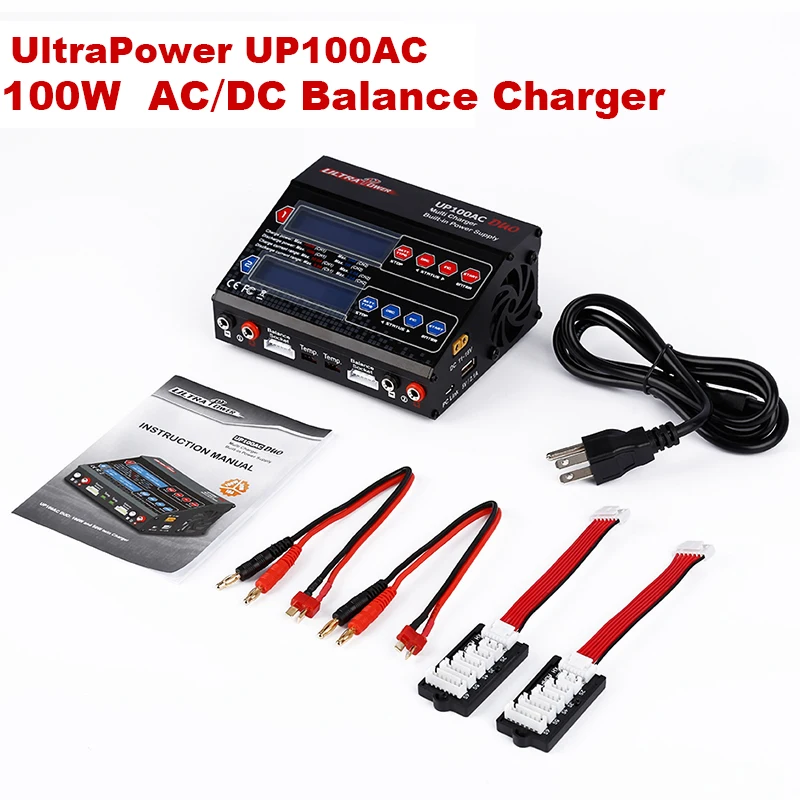

RC Lipo Battery Charger Dual 2 Port 100Watt 10/6Amp AC DC Balancing Battery Charger LiPo UP100AC for RC FPV

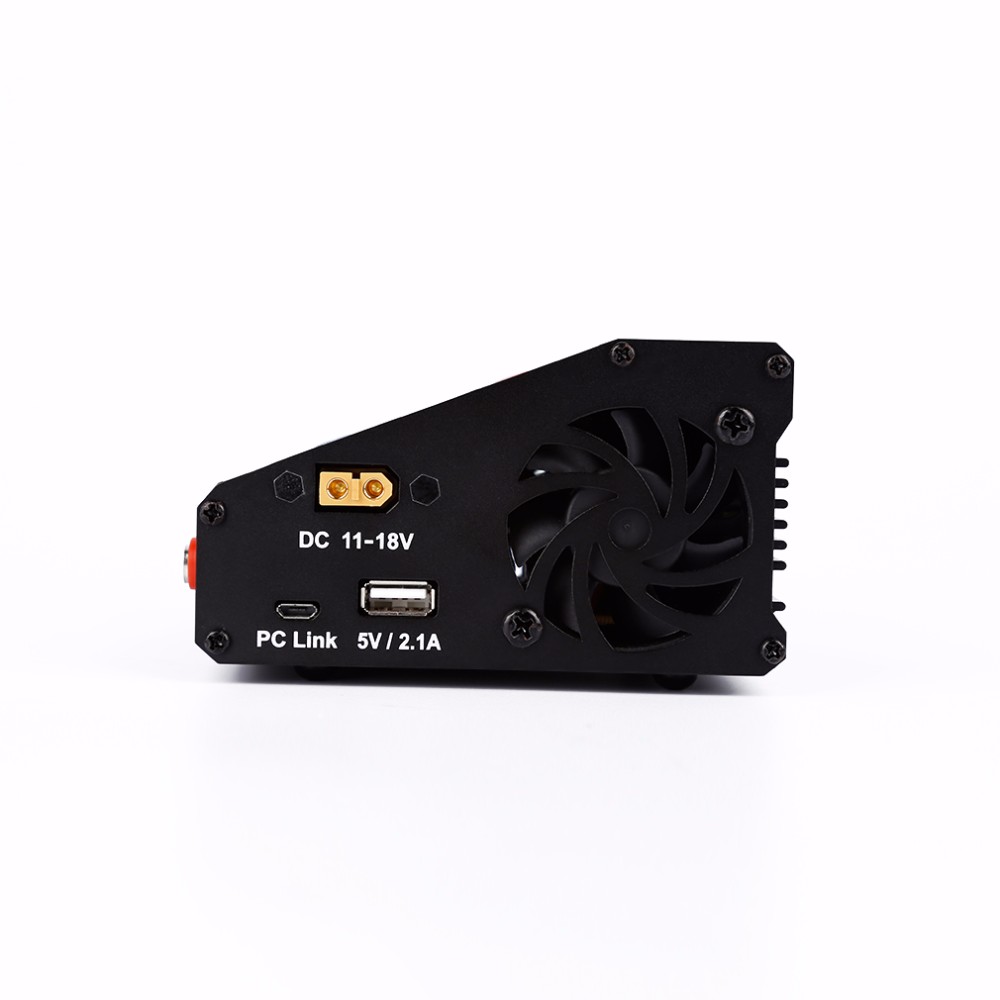

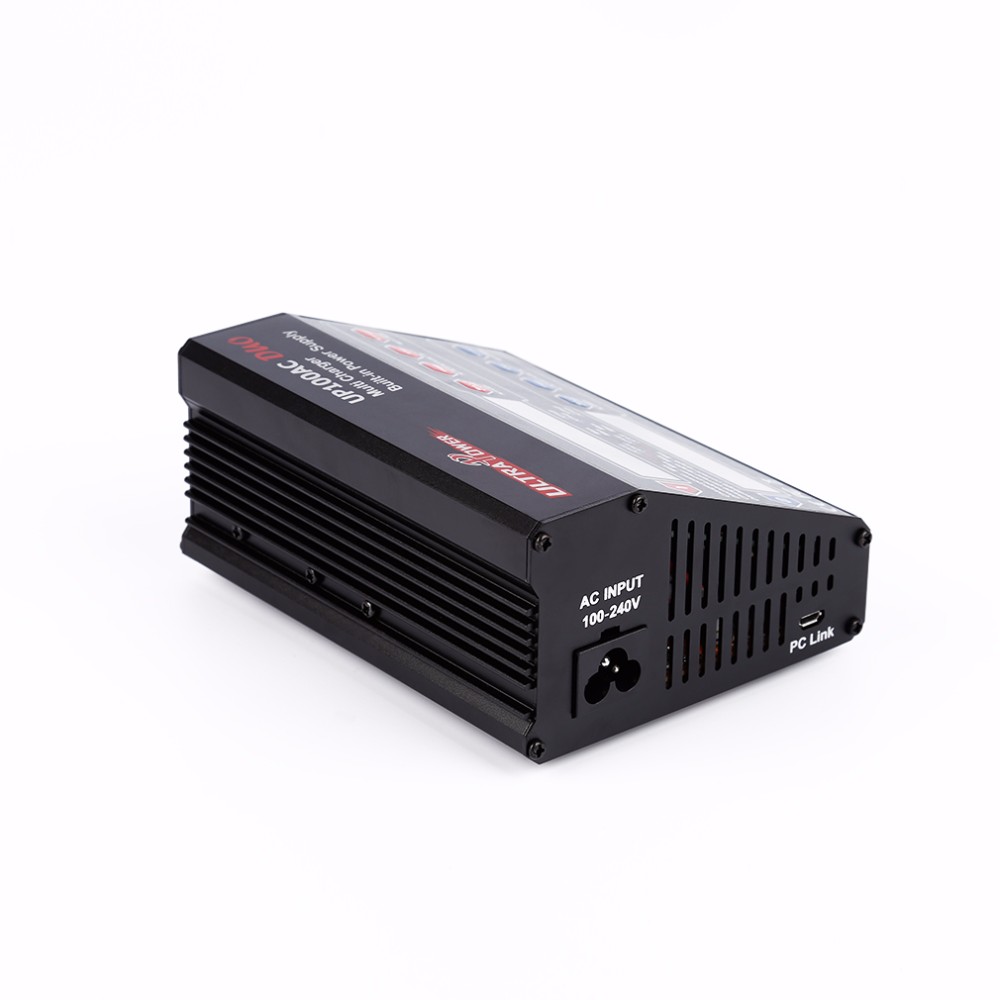

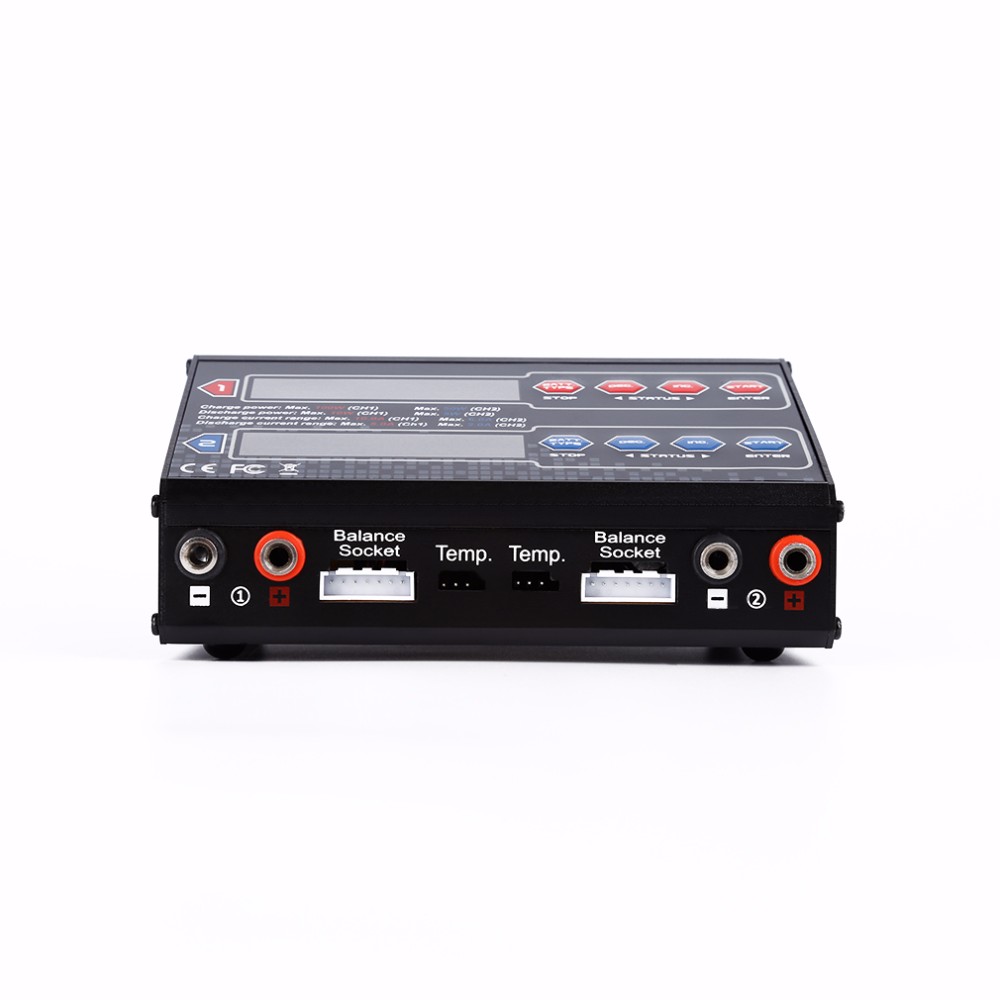

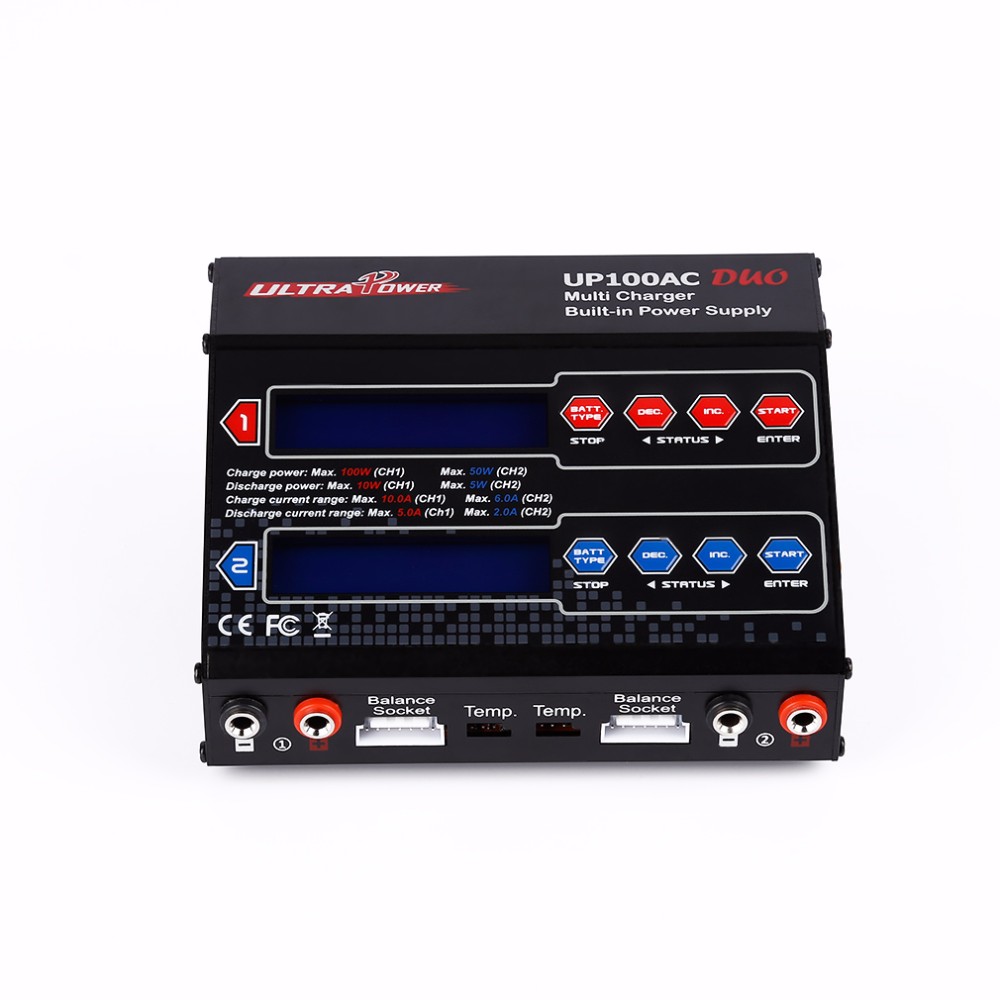

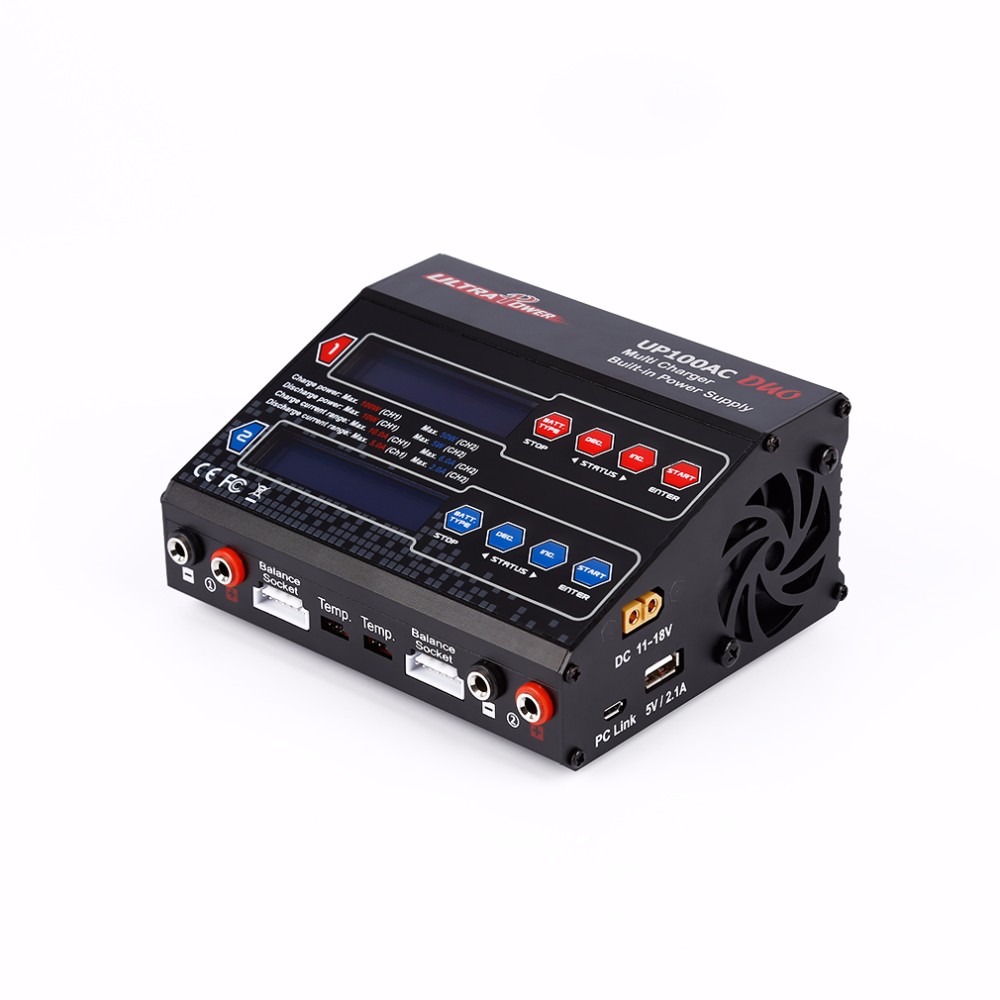

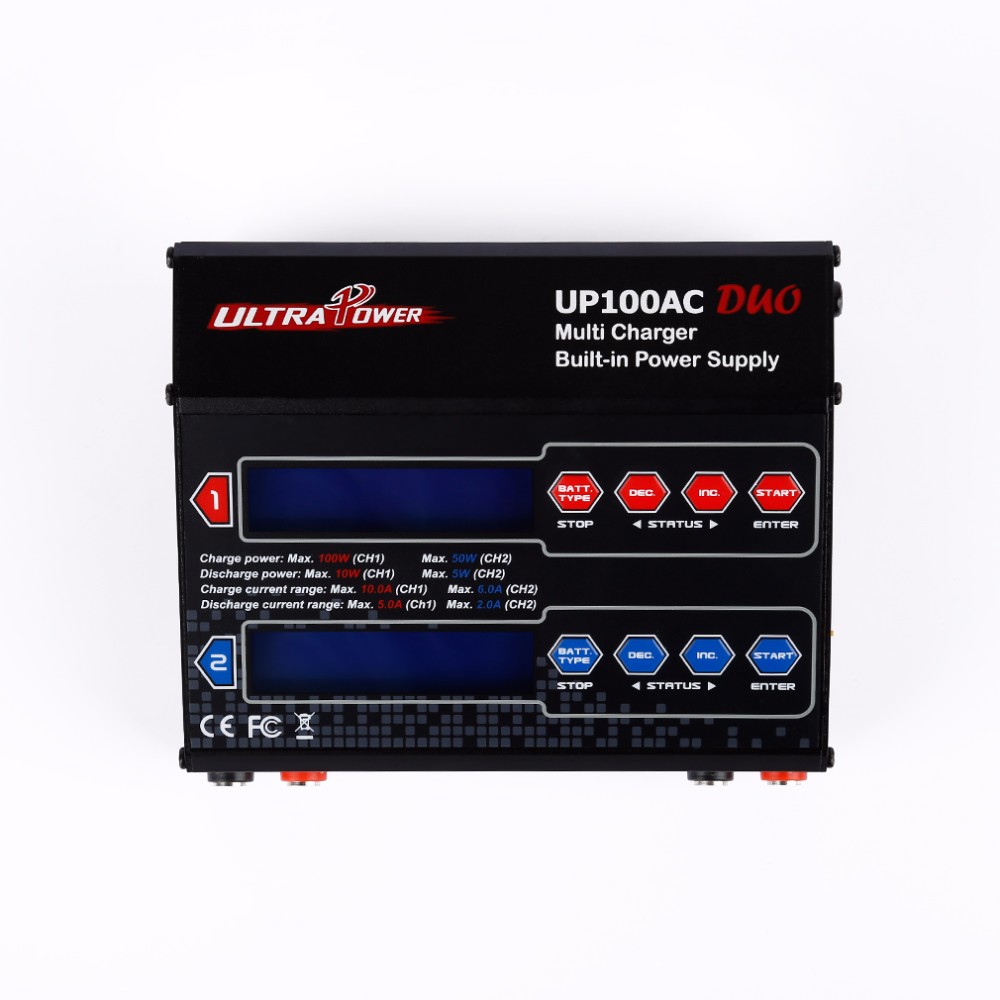

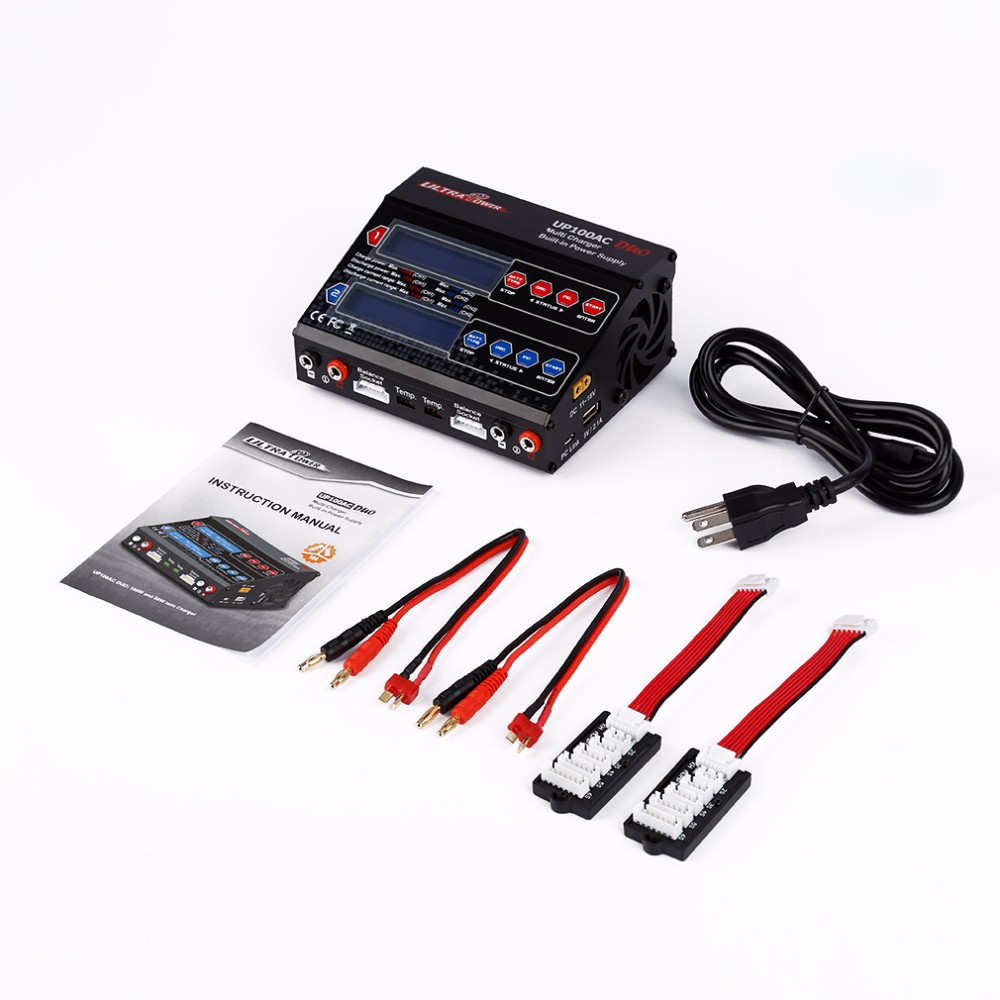

Features: This is the Ultra Power UP100AC Duo, Dual Port Multi-Chemistry Battery Charger. It can be used worldwide with its auto switching power supply, compatible with 100-240V. It can also be powered by DC power, allowing it to be used out in the field when a wall outlet is not available. It has a high 100Watt Max Output! It has 2 independent charging ports. Port 1 is capable of 100Watts* and 10Amps max output and Port 2 is capable of 50Watts and 6Amps max output. The charger can also be used as a power supply to power other devices, up to 120Watts from the DC Port! It’s a multi-chemistry charger so it can properly charge LiPo, LiIon, LiFe, NiMH, NiCd and Pb (lead acid) batteries. It has a built in Balancer for Lithium type batteries. Each port has its own screen, buttons, 4mm output ports, balance port, temperature sensor port, and PC link port. As an added bonus, the charger has a 5V 2.1A USB port built into it to power and recharge your cell phone, tablet, etc. High Power Output: This charger boasts 100Watts* of total charging power! Convenience: Charge two batteries at once, even if they are not the same chemistry, voltage, or capacity. This charger has 2 individual charge ports and plugs directly into the wall. It also can be connected to a DC power source such as a 12V car battery or a DC Power Supply (DC Power Cable not included). The Charger also features LiPo Balance Charge, LiPo Fast Charge, LiPo Storage, and LiPo Discharge modes. Power Supply: The charger can be used to power other DC devices such as chargers, lathes, lights, etc. It puts out a whopping 120Watts of power! Simply plug the charger into the wall and use the DC port on the right side of the charger to power your device. Reliability: UltraPower is known for their great reliability. They use the best internal components and circuitry available to create long lasting products. Lithium Battery Meter Check the voltage of a Lithium battery’s cells when plugged into the balance port. The screen will provide a readout of each cell’s voltage, the total pack voltage, as well as the highest and lowest cells. Battery Memory You can program and store up to 10 different types of battery settings on each port. Then simply load the program to start charging using your stored battery settings. Menu Options: LiPo Battery, LiIon Battery, LiFe Battery Balance Charge (Balances cells inside of battery while charging for optimal performance & safety) Charge Fast Charge Storage Mode (Brings battery to approx. half charge, best for long term non-use) Discharge NiMH Battery, NiCD Battery Manual Charge (Manually set charge amperage) Auto Charge (Set amperage limit, charger will auto adjust) Discharge (Voltage adjustable from 0.1V-25.2V) Re-Peak (Top off the battery before use) Cycle (Cycle Charge/Discharge or Discharge/Charge up to 5 times) Pb (Lead Acid batteries such as the battery in your car) Charge Discharge Battery Memory (Store up to 10 battery settings that can be loaded to the charger) Battery Type (LiPo, LiIon, LiFe, NiMH, NiCD, Pb) Battery Voltage Charge Current (Port 1: 0.1A-10.0A, Port 2: 0.1A-6.0A) Discharge Current (Port 1: 0.1A-5.0A 10Watts max, Port 2: 0.1A-2.0A 5Watts max) Discharge Voltage LiPo 3.0V – 3.3V LiIon 2.9V – 3.2V LiFe 2.6V – 2.9V NiMH 0.1V – 1.1V NiCD 0.1V – 1.1V Terminal Voltage Control LiPo 4.18V – 4.30V LiIon 4.08V – 4.20V LiFe 3.58V – 3.70V Temperature Cut-Off (20°C-80°C, 68°F-1765°F) NiMH & NiCD Trickle (OFF or 50mA – 300mA) NiMH & NiCD Peak Delay (OFF or 1min – 5min) NiMH & NiCD Delta Peak Sensitivity (3mV/C – 14mV/C) Save Program System Settings Rest Time between Charge/Discharge Cycles (1min – 60min) Safety Timer (OFF or 1min – 720min) Capacity Cut-Off (OFF or 100mAh – 50,000mAh) Key Beep and Buzzer (ON or OFF for each) Input Power Low Voltage Cut-Off (10.0V – 11.0V) Temperature Display (Shows the internal charger temperature and the external temperature if an optional temp sensor is plugged in) Factory Reset to Defaults Software Version Specifications: AC Input voltage AC 100V-240V (Auto Switching Power Supply) DC Input voltage DC 11.0V-18.0V (DC Power Cable not included) Charge current Port 1: 0.1A-10.0A, Port 1: 0.1A-6.0A Discharge current Port 1: 0.1A-5.0A, Port 2: 0.1A-2.0A Charge power max Total: 100Watts, Port 1: 100Watts*, Port 2: 50Watts Discharge power maxPort 1: 10Watts, Port 2: 5Watts Balance current max. 300mA/cell Lithium battery cell count 1-6 (S)eries NiCd/NiMH battery cell count 1-15 Cells Lithium battery types Li-Po, Li-ion, Li-Fe Pb battery voltage 2V-20V (1-10 cells) mAh Capacity: 100mAh – 50,000mAh Dimension: 145 x 115 x 64mm/5.7 x 4.5 x 2.5 inch Package size: 248 x 128 x 80mm/9.8 x 5 x 3.1 inch Net Weight: 901g Package weight: 1042g Package included: 1 x UP100AC Duo Charger 1 x AC Power Cord 2 x JST-XH Balance Boards 2 x Deans Charge Leads/Cables 1 x instruction Manual Warranty: UltraPower offers a great 1 Year warranty on their chargers.
